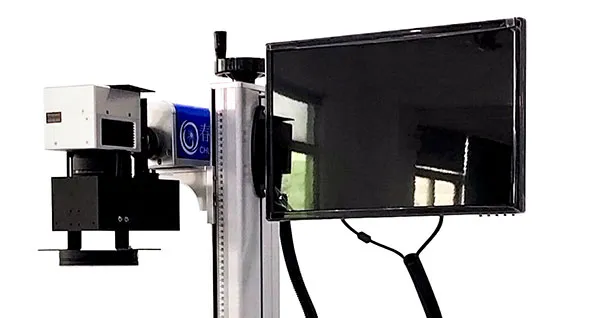

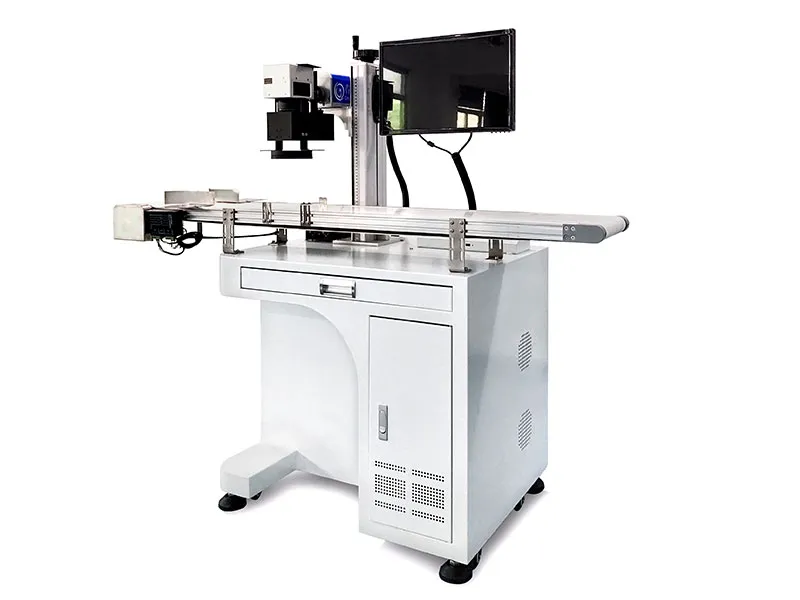

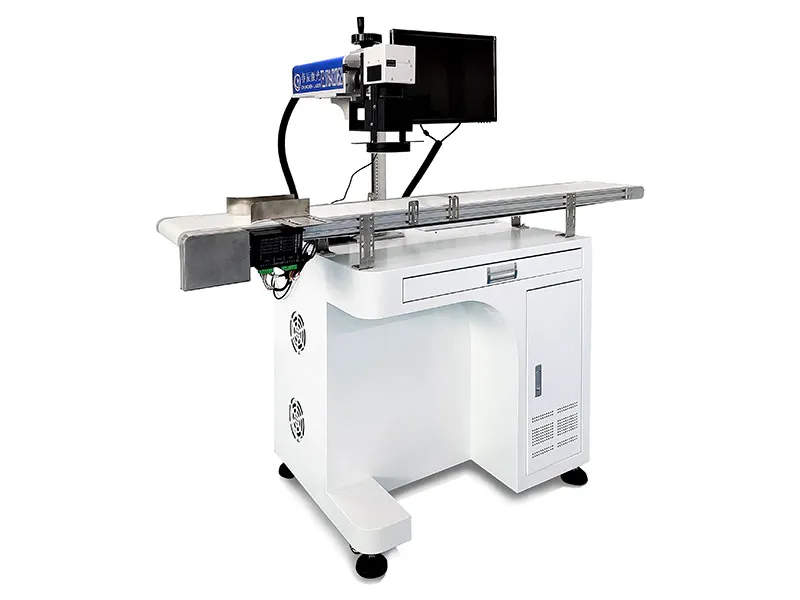

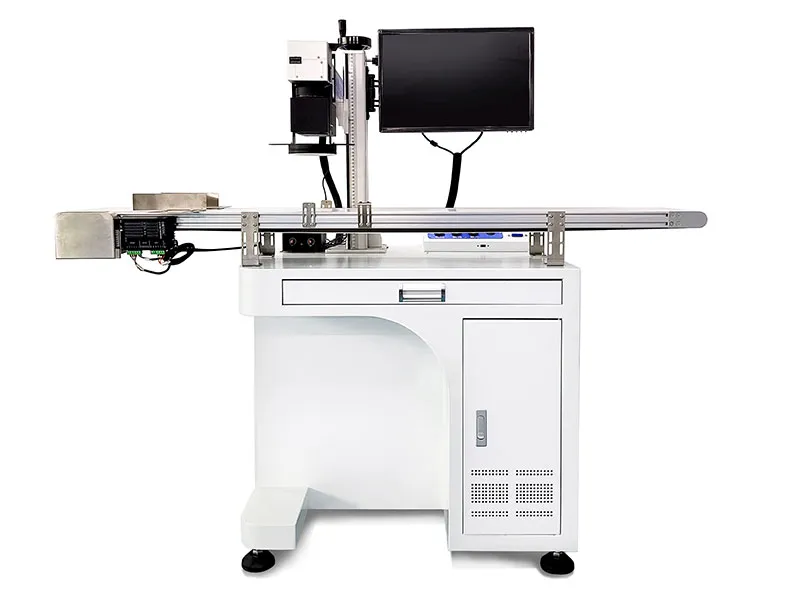

CCD visual positioning technology is widely used in modern manufacturing for ensuring precision and efficiency. It enables accurate marking by capturing the position of products, making it ideal for automated production lines and reducing manual labor costs. Our CCD visual positioning laser marking workstation features a position-capturing camera system for fast and accurate marking. This laser engraving system can quickly locate and mark multiple products at once, even supporting automated conveyor belt feeding. The visual positioning reduces the need for manual labor, improves efficiency, and easily integrates with automated production lines, making it cost-effective.
Compared to traditional laser markers, this system significantly reduces the time between markings, saving 3-5 times the product handling time and offering higher position accuracy. Visual positioning laser marking machines are suitable for ultra-fine processing markets, crafts, IC electronic components, and PPC circuit boards. We offer fiber, UV, and CO₂ visual positioning laser marking machines. Contact us to find the right solution for your needs.

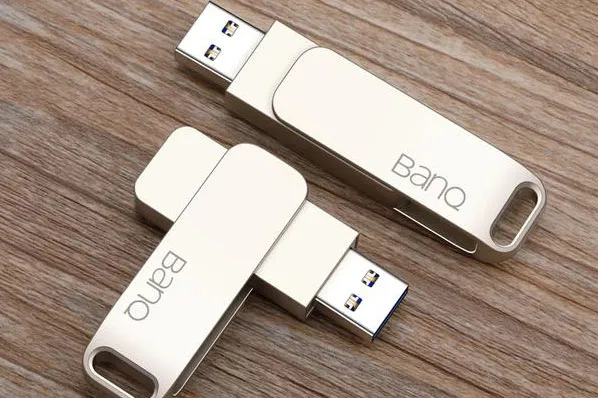

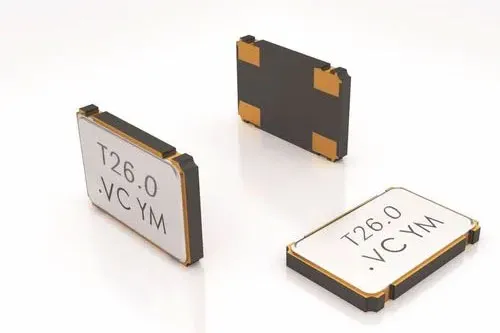

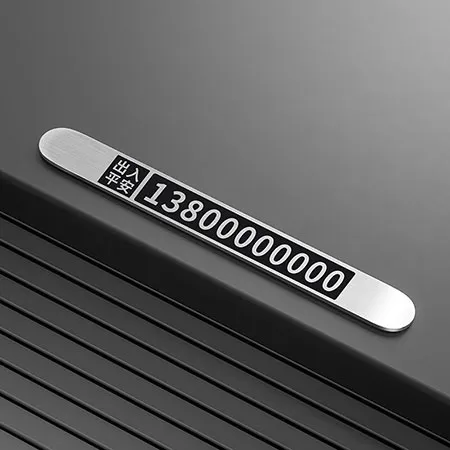

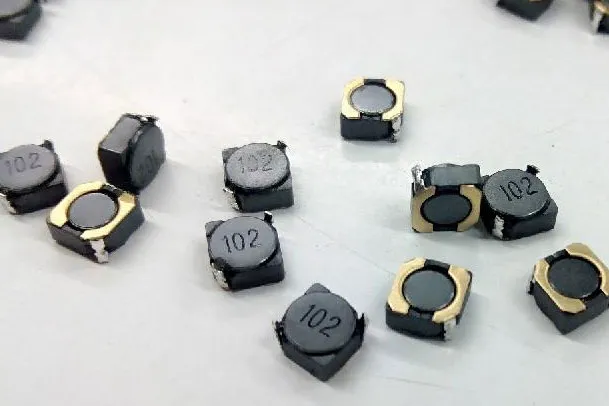

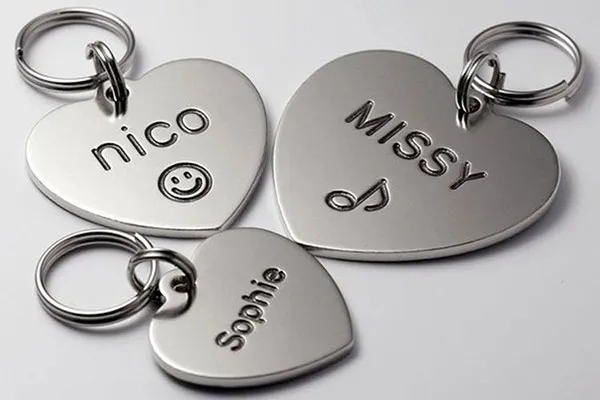

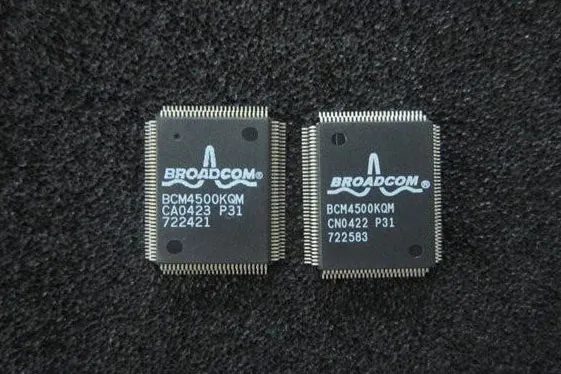

Ideal for marking integrated circuits, mobile phone accessories, industrial bearings, watches, electronic and communication products, jewelry, and e-cigarettes. It is widely used in industries that demand precision and efficiency.
| Model | | | |
| Laser power | 3W/20W | 5W/30W | 10W/50W |
| Laser wavelength | 355nm/1064nm | ||
| Beam quality | M²< 1.2 | ||
| Pulse stability | < 3% | ||
| Pulse width | < 10ns(@20kHz) | < 15ns(@20kHz) | < 20ns(@20kHz) |
| Operating temperature | 15-30 ℃ | ||
| Repetition frequency | 20-200kHz | ||
| Power supply | AC220V, 50HZ | ||
| Cooling method | Water cooling/air cooling | ||
| Total power | 600W | 600W | 1.5kW |
| Visual positioning system | Accuracy:±0.05-0.1 (optional depending on products being marked) | ||
| CCD camera | 20 megapixel (optional depending on products being marked) | ||
| XY slide | X:500 Y:300 (optional depending on products being marked) | ||
Made of high-quality aluminum alloy, the adjustable Z-axis ensures precise positioning and easy adjustment for stable and accurate operations.
The field lenses used in our laser machines focus parallel laser beams into a single point, ensuring uniform lighting and durability, even in harsh environments.
The high-performance scale ruler ensures precise and detailed marking. It allows for accurate positioning, resulting in cleaner and more accurate marks, making it essential for industries requiring precision.
Equipped with a high-speed digital galvanometer scanner, the laser marking system offers fast marking speeds and high light efficiency. It ensures long-term reliable performance with minimal maintenance requirements, making it ideal for high-demand industrial applications.
