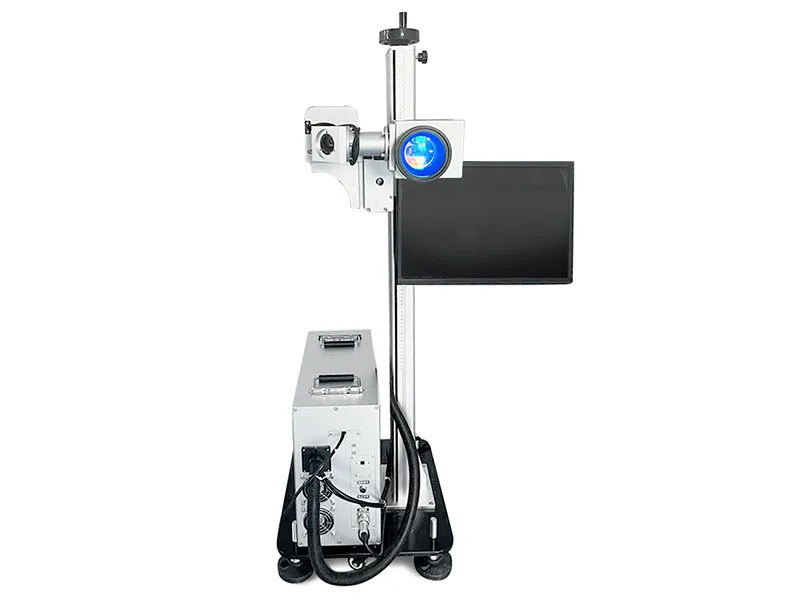

Flying Laser Marking Machine

Flying laser marking is a technique used for continuous marking on products moving rapidly along a production line. This marking method ensures efficient and precise marking without slowing down the manufacturing process.

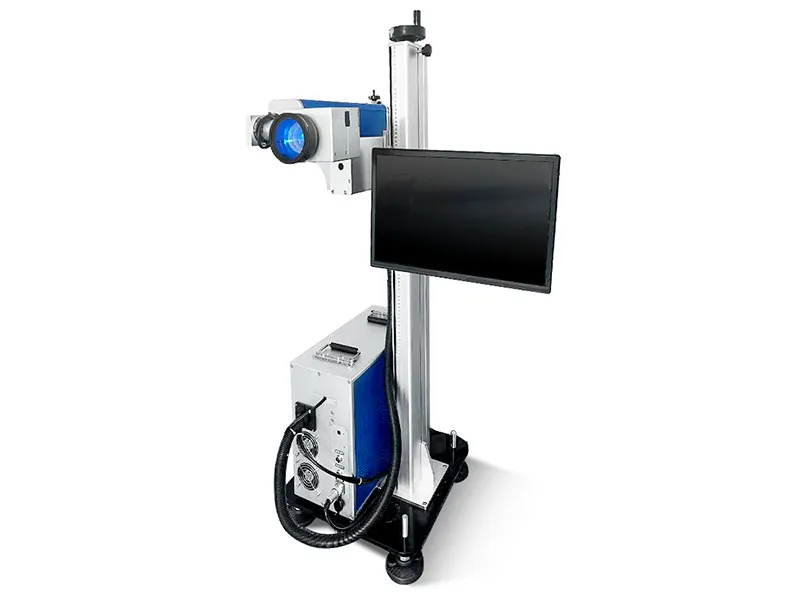

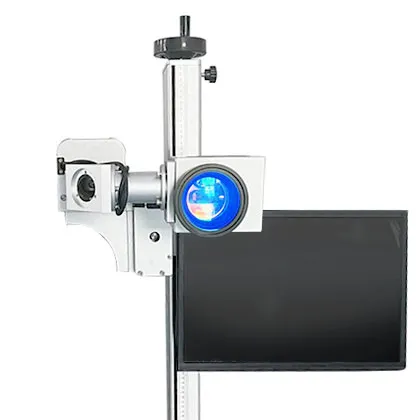

Our flying laser marking machine is designed for industrial use, capable of marking on fast-moving products with high accuracy. It incorporates a fixed laser marker, which can utilize a fiber laser source, CO₂ laser source, or other available laser technologies. This setup allows for seamless integration into existing production lines, making it ideal for applications requiring consistent, high-speed marking.

Marking speed: up to 7000mm/s
Marking depth: ≤1.0mm/≤1.2mm/≤1.5mm/≤2.0mm (mold steel)
Standard marking scope: 180*180mm
Optional marking scope: 100*100mm, 150*150mm, 220*220mm, 300*300mm
More
Applications

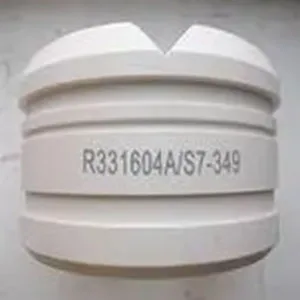

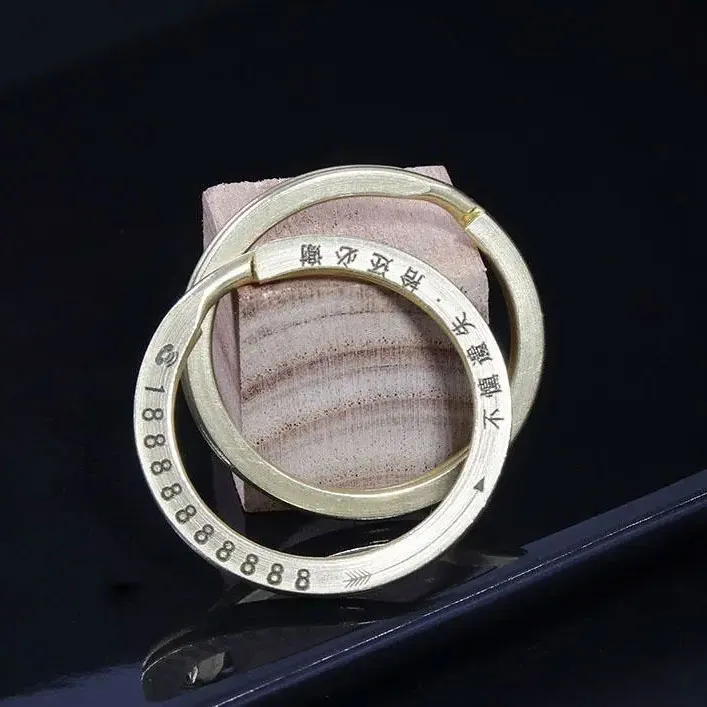

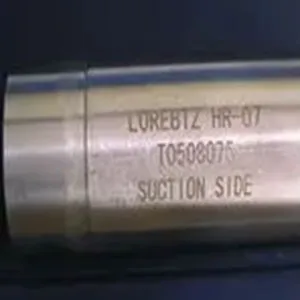

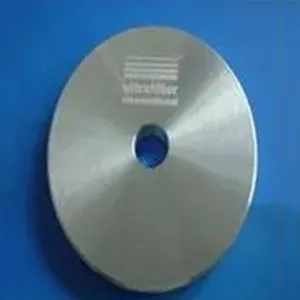

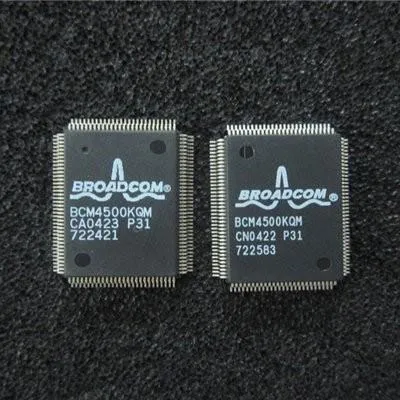

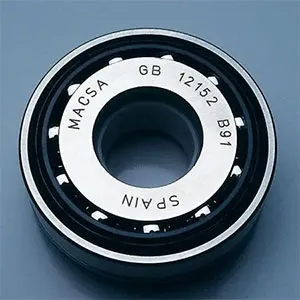

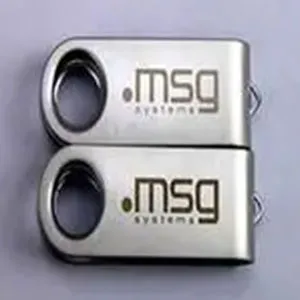

Flying laser marking machines are widely used for marking and engraving on various products such as integrated circuits, bearings, electronic components, and metal hardware.

Applications
Applications
Applications
Applications
Applications
Applications
Applications
Applications
Features
Features
  • High configuration: Equipped with a high-quality laser source and high-speed oscillating scanner, our flying laser marker is easy to operate and offers stable, long-term performance. Its flexible design supports high-speed continuous marking on various equipment, operating 24 hours a day without interruption
  • Automated design: The split design incorporates automatic sensors and rotary encoders, enabling fully automated laser marking for continuous production lines
  • No consumables needed: The flying laser source has a theoretical lifespan of 100,000 hours, eliminating the need for consumables like ink, which helps reduce costs
  • Maintenance-free: With an air-cooled design, our laser marker requires minimal maintenance, further lowering maintenance costs
Specifications
Model CC-20W CC-30W CC-50W CC-100W
Laser power 20W 30W 50W 100W
Laser wavelength 1064nm
Q-switch frequency 1-1000kHz
Standard marking scope 180*180mm
Optional marking scope 100*100mm, 150*150mm, 220*220mm, 300*300mm
Min. line width 0.03mm
Min. character size English: 0.15*0.15mm
Repeat accuracy ±0.005mm
Marking speed ≤7000mm/s
Marking depth ≤1.0mm (mold steel) ≤1.2mm (mold steel) ≤1.5mm (mold steel) ≤2.0mm (mold steel)
Power supply AC220V±10%, 50Hz, 5Amp
Total power ≤0.6kW ≤0.8kW
Cooling method Air cooling
Working conditions Temperature: 1-35℃
Humidity: 5%-80% (non-condensing)
